Flash AS繪制旋轉的3D效果菜單動畫

文章來源于中國教程網論壇，感謝作者 cao4811 給我們帶來經精彩的文章！

設計教程/設計教程/Flash教程2010-04-29

在這個3D旋轉菜單教程中，將學習如何用AS3代碼創建一個垂直的3D立體菜單效果，木馬將會根據鼠標決定旋轉速度。

演示：

[swf]http://www.09yu.com/uploads/media/091014/1-1004291H324.swf[/swf]

1、新建Flash文件,設置寬、高屬性為 550 × 400 。

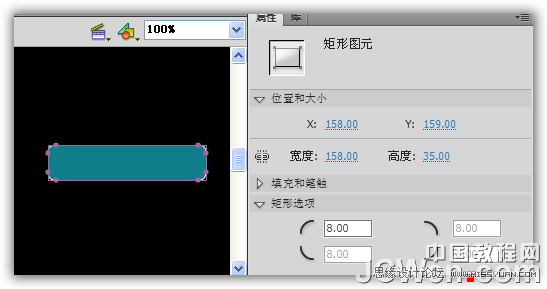

2、用圓角矩形工具，畫一個 158 × 35的長方形。筆觸為8白色，填充色#0 F7E 88。圖1：

Flash AS繪制旋轉的3D效果菜單動畫

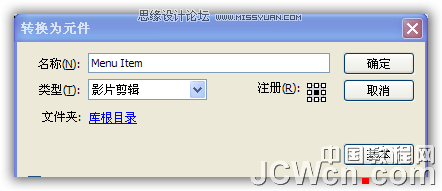

3、將長方形轉換成名為 " Menu Item " 的影片剪輯。設定注冊點為中心。圖2：

Flash AS繪制旋轉的3D效果菜單動畫

4、雙擊舞臺上的影片剪輯，進入編輯狀態。創建動態文本，在它里面輸入需要的本文。圖3

Flash AS繪制旋轉的3D效果菜單動畫

5、在屬性面板中輸入實例名字 " menuItemText" 。

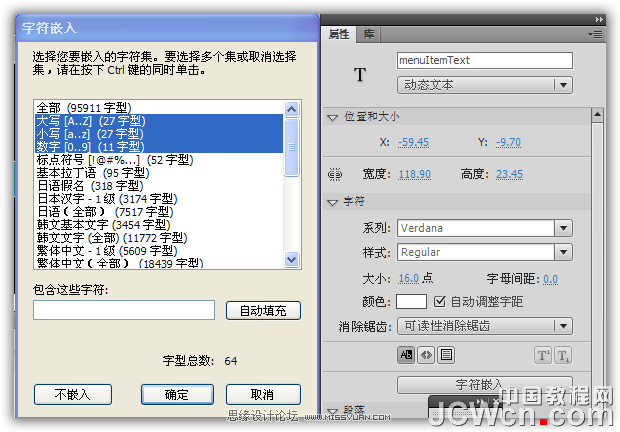

6、按下字符嵌入按鈕，插入下列字型。圖4：

Flash AS繪制旋轉的3D效果菜單動畫

7、切換回主場景1，刪除舞臺上的影片剪輯，實例將由代碼生成。

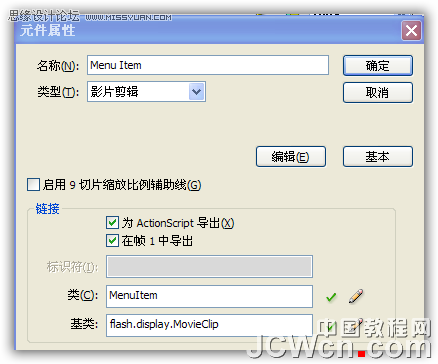

8、打開庫元件面板，右鍵單擊影片剪輯，(CS3選鏈接、CS4選屬性)給元件添加一個綁定類。類名 " MenuItem" 。圖5：

Flash AS繪制旋轉的3D效果菜單動畫

9、選中第1幀，打開動作面板輸入代碼：

//The total number of menu items
const NUMBER_OF_ITEMS:uint = 20;
//This array will contain all the menu items
var menuItems:Array = new Array();
//Set the focal length
var focalLength:Number = 350;
//Set the vanishing point
var vanishingPointX:Number = stage.stageWidth / 2;
var vanishingPointY:Number = stage.stageHeight / 2;
//We calculate the angleSpeed in the ENTER_FRAME listener
var angleSpeed:Number = 0;
//Radius of the circle
var radius:Number = 128;
//Calculate the angle difference between the menu items (in radians)
var angleDifference:Number = Math.PI * (360 / NUMBER_OF_ITEMS) / 180;
//This loop creates and positions the carousel items
for (var i:uint = 0; i < NUMBER_OF_ITEMS; i++) {
//Create a new menu item
var menuItem:MenuItem = new MenuItem();
//Calculate the starting angle for the menu item
var startingAngle:Number = angleDifference * i;
//Set a "currentAngle" attribute for the menu item
menuItem.currentAngle = startingAngle;
//Position the menu item
menuItem.xpos3D = - radius * Math.cos(menuItem.currentAngle) * 0.5;
menuItem.ypos3D = radius * Math.sin(startingAngle);
menuItem.zpos3D = radius * Math.cos(startingAngle);
//Calculate the scale ratio for the menu item (the further the item -> the smaller the scale ratio)
var scaleRatio = focalLength/(focalLength + menuItem.zpos3D);
//Scale the menu item according to the scale ratio
menuItem.scaleX = menuItem.scaleY = scaleRatio;
//Position the menu item to the stage (from 3D to 2D coordinates)
menuItem.x = vanishingPointX + menuItem.xpos3D * scaleRatio;
menuItem.y = vanishingPointY + menuItem.ypos3D * scaleRatio;
//Assign an initial alpha
menuItem.alpha = 0.3;
//Add a text to the menu item
menuItem.menuItemText.text = "Menu item " + i;
//We don’t want the text field to catch mouse events
menuItem.mouseChildren = false;
//Assign MOUSE_OVER, MOUSE_OUT and CLICK listeners for the menu item
menuItem.addEventListener(MouseEvent.MOUSE_OVER, mouseOverItem);
menuItem.addEventListener(MouseEvent.MOUSE_OUT, mouseOutItem);
menuItem.addEventListener(MouseEvent.CLICK, itemClicked);
//Add the menu item to the menu items array
menuItems.push(menuItem);
//Add the menu item to the stage
addChild(menuItem);
}
//Add an ENTER_FRAME listener for the animation
addEventListener(Event.ENTER_FRAME, moveCarousel);
//This function is called in each frame
function moveCarousel(e:Event):void {
//Calculate the angle speed according to mouseY position
angleSpeed = (mouseY - stage.stageHeight / 2) * 0.0002;
//Loop through the menu items
for (var i:uint = 0; i < NUMBER_OF_ITEMS; i++) {
//Store the menu item to a local variable
var menuItem:MenuItem = (MenuItem)(menuItems[i]);
//Update the current angle of the item
menuItem.currentAngle += angleSpeed;
//Calculate a scale ratio
var scaleRatio = focalLength/(focalLength + menuItem.zpos3D);
//Scale the item according to the scale ratio
menuItem.scaleX=menuItem.scaleY=scaleRatio;
//Set new 3D coordinates
menuItem.xpos3D=- radius*Math.cos(menuItem.currentAngle)*0.5;
menuItem.ypos3D=radius*Math.sin(menuItem.currentAngle);
menuItem.zpos3D=radius*Math.cos(menuItem.currentAngle);
//Update the item’s coordinates.
menuItem.x=vanishingPointX+menuItem.xpos3D*scaleRatio;
menuItem.y=vanishingPointY+menuItem.ypos3D*scaleRatio;
}
//Call the function that sorts the items so they overlap each other correctly
sortZ();
}
//This function sorts the items so they overlap each other correctly
function sortZ():void {
//Sort the array so that the item which has the highest
//z position (= furthest away) is first in the array
menuItems.sortOn("zpos3D", Array.NUMERIC | Array.DESCENDING);
//Set new child indexes for the images
for (var i:uint = 0; i < NUMBER_OF_ITEMS; i++) {
setChildIndex(menuItems[i], i);
}
}
//This function is called when a mouse is over an item
function mouseOverItem(e:Event):void {
//Change the alpha to 1
e.target.alpha=1;
}
//This function is called when a mouse is out of an item
function mouseOutItem(e:Event):void {
//Change the alpha to 1
e.target.alpha=0.3;
}
//This function is called when an item is clicked
function itemClicked(e:Event):void {
trace("Item clicked! Add your own logic here.");
}

10、完成，測試你的影片。

源文件請到論壇：http://www.missyuan.com/viewthread.php?tid=454675
